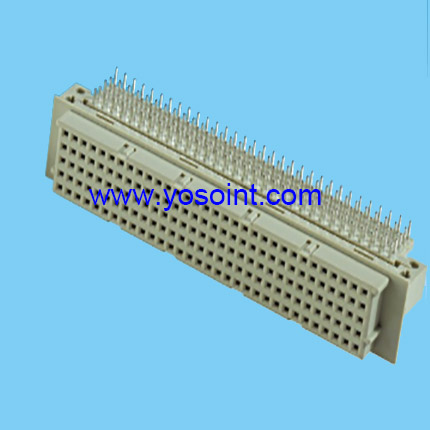

DIN41612 Connector 5Rows female 160P Right Angle 5FR
Product Name : DIN41612 Connector 5Rows female 160P Right Angle 5FR
Product ID : 35115160FR
Insulator material : LCP PBT PA6T PA9T
Pitch : 2.54mm; 5.08mm
Plating : gold plated; tin plated
Type of terminal : Straight solder;right angle
Number of rows : 1~5 rows
Directions
Product Information
| Pitch | 2.54mm |
| Number of rows | single row ;double row ;third row; four rows; five rows |
| Number of contact | 10;16;20;32;44;48;50;64 |
| Insulator material | LCP PBT PA6T PA9T |
| Insulator Flammability | UL 94V-0 |
| Contact material | phosphor bronze; brass |
| Plating | gold plated; tin plated |
| Type or terminal | Straight solder;right angle |
| Solder length | 3.0mm;4.0mm;2.5mm;13mm;17mm |
Product Specification
Rated current: 3.0AMP
Contact resistance: 30mΩ Max
Withstand voltage: 1000V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40C to +105C
Contact Material: phosphor bronze
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PBT
Max.Processing Temp: 180C for 30-60 seconds
(200C for 10 seconds)

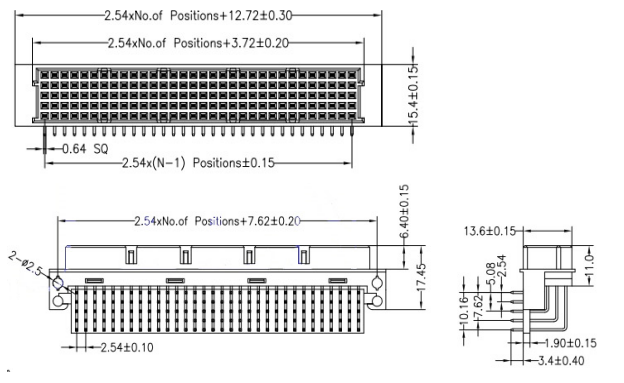

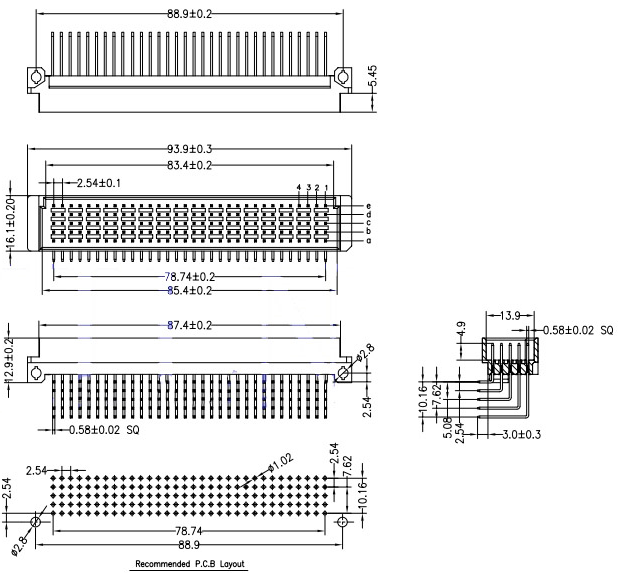

Product Drawing
