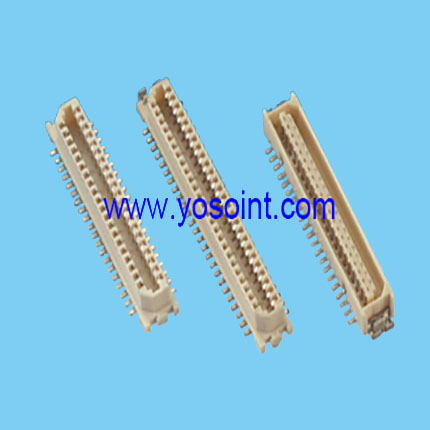

1.0mm BTB connector male header H3.3 SMT W5.5 with peg and post

1.0mm BTB connector male header H3.3 SMT W5.5 with peg and post
Product Name : 1.0mm BTB connector male header H3.3 SMT W5.5 with peg and post
Product ID : YS3712M(F)X
Pitch : 0.5mm; 0.6mm; 0.635mm; 0.8mm; 1.0mm; 1.25mm; 2.54mm
Insulator material : PA9T/LCP(UL94V-0)
Insulator height : PA9T/LCP(UL94V-0)
Contact Material : Phosphor Bronze
Packing : Tube packing; Reel packing
Directions

Product Information

Pitch  1.0mm;
Insulator height H3.3
Type of terminal SMT
Number of cocntact pins 10P~100P
Plating  Gold over Ni; selective gold
Package method  Tube package;tape&reel package

Product Specification

Electical Rating:AC/DC 50V 0.5A
Insulation Resistance: 500MΩ
Withstand Volt:200VAC/minute
Oprating Temperature:-40℃ to +105℃
Contact Material: Phosphor Bronze
Contact: Au over Ni
Insulator Material: PA9T/LCP(UL94V-0)
Max. Precessing Temp: 230℃ for 30~60 seconds
                                  (260℃ for 10seconds)

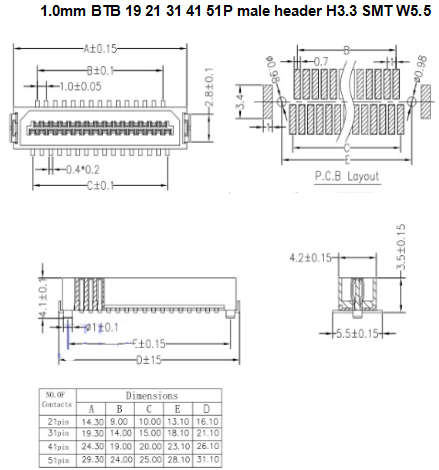

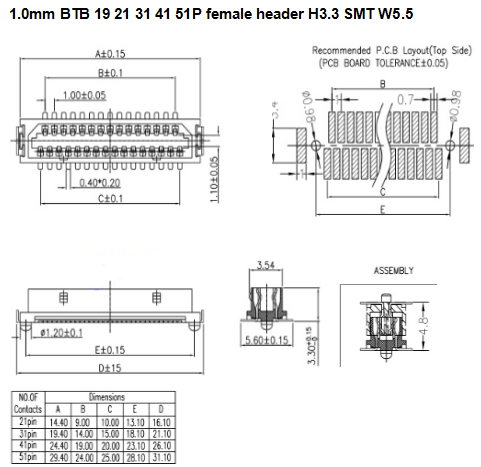

Product Drawing
