DIN41612 Eurocard Connector 3 Rows Male Right Angle 3MR

DIN41612  Eurocard Connector 3 Rows Male Right Angle 3MR

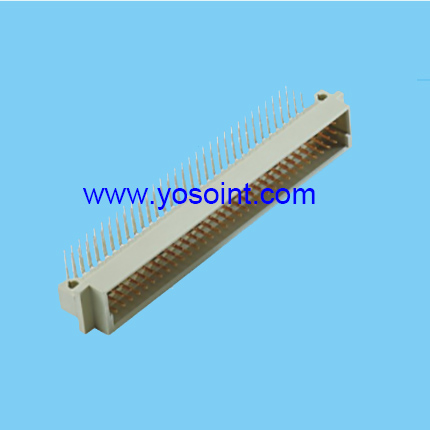

Product Name : DIN41612 Eurocard Connector 3 Rows Male Right Angle 3MR
Product ID : 35113XXMR
Insulator material : LCP PBT PA6T PA9T
Pitch : 2.54mm; 5.08mm
Plating : gold plated; tin plated
Type of terminal : Straight solder;right angle
Number of rows : 1~5 rows
Directions

Product Information

Pitch  2.54mm
Number of rows  single row ;double row ;third row; four rows; five rows
Number of contact  10;16;20;32;44;48;50;64
Insulator material LCP PBT PA6T PA9T
Insulator Flammability  UL 94V-0
Contact material phosphor bronze; brass
Plating  gold plated; tin plated
Type or terminal  Straight solder;right angle
Solder length  3.0mm;4.0mm;2.5mm;13mm;17mm



Product Specification

Rated current: 3.0AMP

Contact resistance: 30mΩ Max

Withstand voltage: 1000V AC/DC

Insulation resistance: 1000mΩ Min

Opertion Temperature: -40C to +105C

Contact Material: phosphor bronze

Contact Plating: Au or Sn Over Ni.

Insulator Material: Polyester(UL94V-0)

Standard: PBT

Max.Processing Temp: 180C for 30-60 seconds

(200C for 10 seconds)

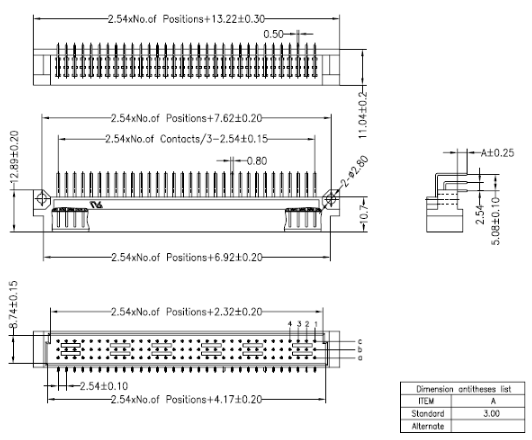

Product Drawing
