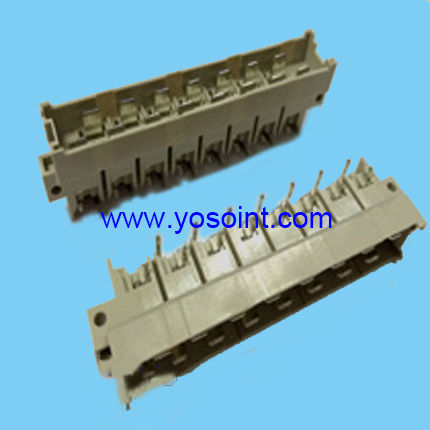

DIN 41612 Eurocard connector male right angle solder 15pin
Product Name : DIN 41612 Eurocard connector male right angle solder 15pin
Product ID : 3512215MR
Insulator material : LCP PBT PA6T PA9T
Pitch : 2.54mm；5.08mm
Plating : gold plated; tin plated
Type of terminal : Straight solder;right angle
Number of Rows : 1~5 rows
Directions
Product Information
| Pitch | 2.54mm 5.08mm |
| Number of row | single row ;double row ;third row; four rows; five rows |
| Number of contact | 8;16;32;48;64;96;128;160 |
| Insulator material | LCP PBT PA6T PA9T |
| Insulator Flammability | UL 94V-0 |
| Contact material | phosphor bronze; brass |
| Plating | gold plated; tin plated |
| Type or terminal | Straight solder;right angle |
| Solder length | 3.0mm;4.0mm;2.5mm;13mm;17mm |
Product Specification
Rated current: 15.0AMP
Contact resistance: 20mΩ Max
Withstand voltage: 1000V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -55C to +125C
Contact Material: phosphor bronze
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PBT
Max.Processing Temp: 180C for 30-60 seconds
(200C for 10 seconds)

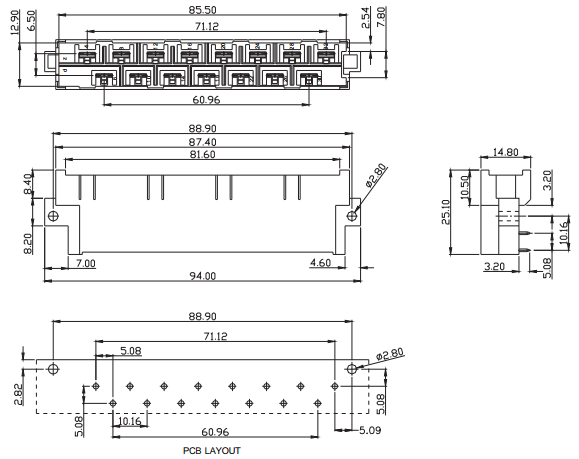

Product Drawing
