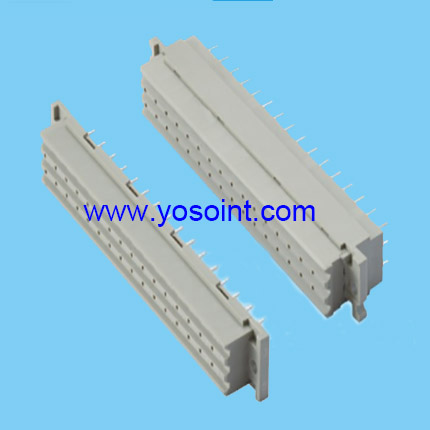

DIN41612 Connector 5.08mm pitch large current 3Rows female 48P straight solder

DIN41612 Connector 5.08mm pitch large current 3Rows female 48P straight solder
Product Name : DIN41612 Connector 5.08mm pitch large current 3Rows female 48P straight solder
Product ID : 3513348FS
Insulator material : LCP PBT PA6T PA9T
Pitch : 2.54mm; 5.08mm
Plating : gold plated; tin plated
Type of terminal : Straight solder;right angle
Number of rows : 1~5 rows
Directions

Product Information

Pitch  5.08mm
Number of rows Three rows
Number of contact  48P
Insulator material LCP PBT PA6T PA9T
Insulator Flammability  UL 94V-0
Contact material phosphor bronze; brass
Plating  gold plated; tin plated
Type or terminal  Straight solder;right angle
Solder length  3.0mm;4.0mm;2.5mm;13mm;17mm



Product Specification

Rated current: 5.6AMP

Contact resistance: 20mΩ Initial

Withstand voltage: 1000V AC/DC

Insulation resistance: 100000mΩ Min

Opertion Temperature: -55C to +125C

Contact Material: phosphor bronze

Contact Plating: Au or Sn Over Ni.

Insulator Material: Polyester(UL94V-0)

Standard: PBT

Max.Processing Temp: 180C for 30-60 seconds

(200C for 10 seconds)

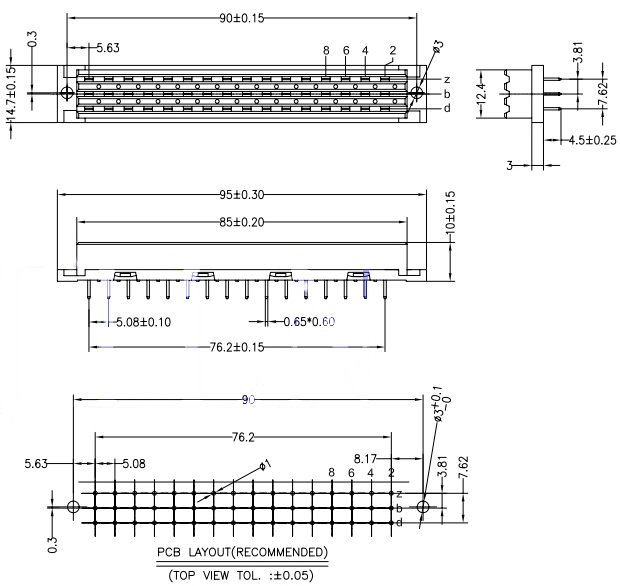

Product Drawing
