0.5mm BTB 10~100P male header of widening double groove with peg anf ground strap SMT type

0.5mm BTB 10~100P male header of widening double groove with peg anf ground strap SMT type
Product Name : 0.5mm BTB 10~100P male header of widening double groove with peg anf ground strap SMT type
Product ID : YS3723MX
Pitch : 0.5mm; 0.6mm; 0.635mm; 0.8mm; 1.0mm; 1.25mm; 2.54mm
Insulator material : PA9T/LCP(UL94V-0)
Insulator height : PA9T/LCP(UL94V-0)
Contact Material : Phosphor Bronze
Packing : Tube packing; Reel packing
Directions

Product Information

Pitch  0.5mm;
Insulator height H2.0; H1.3; H1.0; H0.8
Type of terminal SMT
Number of contact pin  02~100Pin
Plating  Gold over Ni; selective gold
Package method  Tube package;tape&reel package

Product Specification

Electical Rating:AC/DC 50V 0.5A
Insulation Resistance: 500MΩ
Withstand Volt:200VAC/minute
Oprating Temperature:-40℃ to +105℃
Contact Material: Phosphor Bronze
Contact: Au over Ni
Insulator Material: PA9T/LCP(UL94V-0)
Max. Precessing Temp: 230℃ for 30~60 seconds
                                  (260℃ for 10seconds)

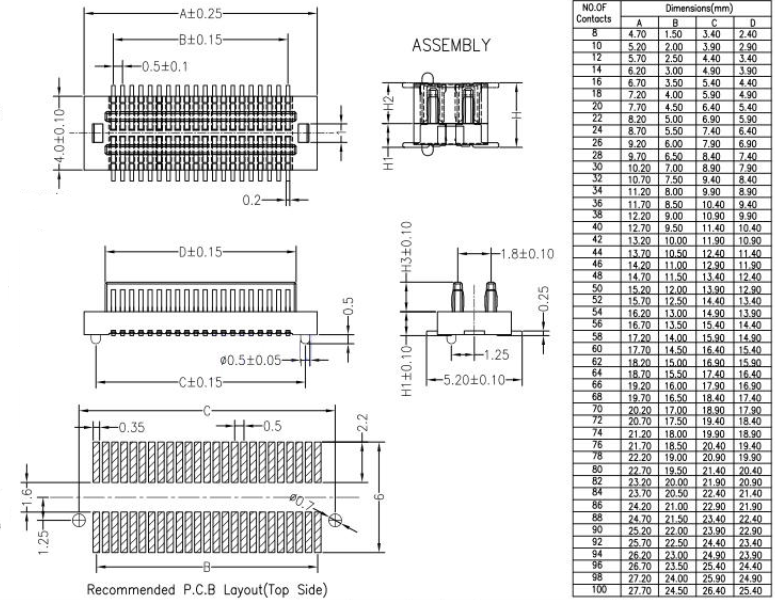

Product Drawing
