Pluggable terminal block Connector 5.08 Pitch Female 2EDG

Pluggable terminal block Connector 5.08 Pitch Female 2EDG

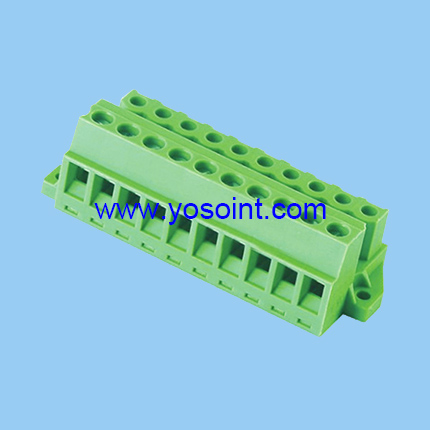

Product Name : Pluggable terminal block Connector 5.08 Pitch Female 2EDG
Insulator material : PBT;PA46;PA6T;PA66
Terminal type : Barrier;PCB screw type;Pluggable; PCB spring
Color : Black;Grey;Blue;Green; Yellow; White
Teminal material : Phosphor bronze or brass
Contact poles : 2~24 contacts
Directions

Product Information

Pitch  2.54mm;3.5mm;3.81mm;3.96mm;5.0mm;5.08mm;6.35mm;7.0mm;7.5mm;7.62mm;8.0mm;9.5mm;9.52mm;10.0mm;11.0mm;10.16mm
Color Black;Grey;Blue;Green;Yellow; White
Insulator material PBT PA46 PA6T PA66
Insulator Flammability UL94V-0
Teminal material Phosphor bronze or brass
Tail length  3.4mm~5.0mm
Screw material  Brass or steel

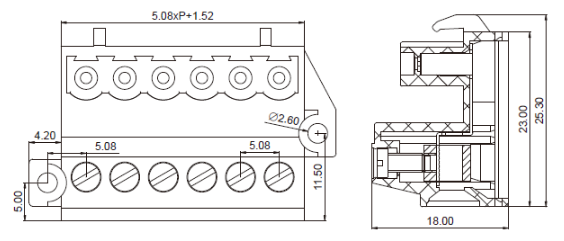

Product Drawing
