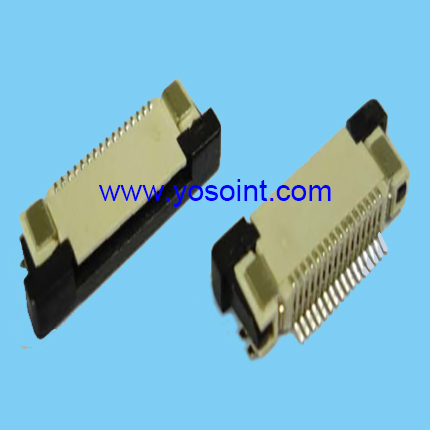

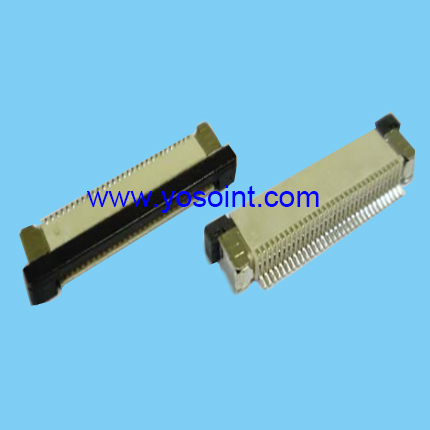

Product Name : FPC connector 0.5mm pitch Surface mount-parallel H2.0

Pitch : 0.3mm; 0.5mm; 1.0mm; 1.25mm; 2.54mm

Type of terminal : straight solder;right angle solder;surface mount; Horizontal SMT

Plating : Gold plated; tin plated

Insulator material : LCP; PA6T;PA9T

Terminal material : Brass or Phosphor bronze

Directions

Product Information

Pitch	0.3mm; 0.5mm; 1.0mm; 1.25mm; 2.54mm
Type of terminal	straight solder;right angle solder;surface mount;Horizontal SMT
Plating	Gold plated; tin plated
Insulator material	LCP; PA6T;PA9T
Insulator Flammability	UL 94V-0
Terminal material	Brass or Phosphor bronze
Contact style	double side contact;downside&upside contact
Package	Bag package;Tube package; Tape&reel package;Pallet package
Withstand voltage	250V AC
Current rating	0.4~1Amps
Contact resistance	20m Ω
insulator resistance	100~1000m Ω
Operating temp.	-25~+85℃
Operating Humidity	Annual mean 75%
