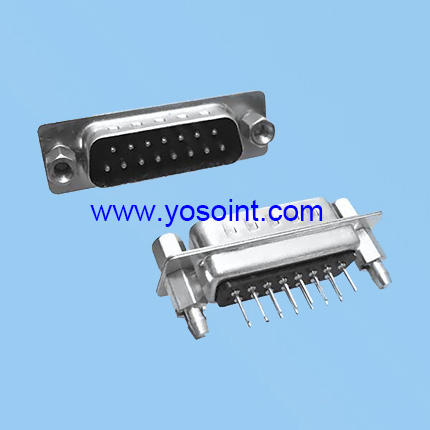

DP D-SUB Connector male with Screw PCB Type
Product Name : DP D-SUB Connector male with Screw PCB Type
Insulator material : PBT,glass filled polyester(UL94V-0)
Contact pin : Alloy Copper phosphor bronze
Contact Pins : 9pins; 15pins; 25pins; 37pins
Connection style : IDC;straight solder;right angle;solder cup;press-fit
Color : Black;Green;Blue; White
Directions
Product Specification
| Pin type | Punch pin;Machined pin |
| Outline option | Standard;high density;DVI connector |
| Connection style | IDC;straight solder;right angle;solder cup;press-fit |
| Color | Black;green;white;blue;red;yellow |
| Insulator material | PBT,glass filled polyester |
| Contact pin | Alloy Copper phosphor bronze |
| Current rating | 3Amps |
| Dieltric withstanding voltage | 500VAC |
| Contact resistance | ＜20m Ω |
| insulator resistance | ＞5000m Ω |
| Operating temp. | -40~105℃ |

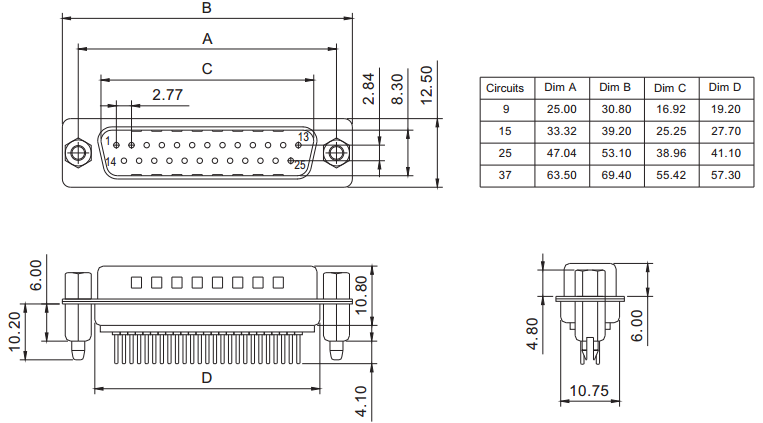

Product Drawing
