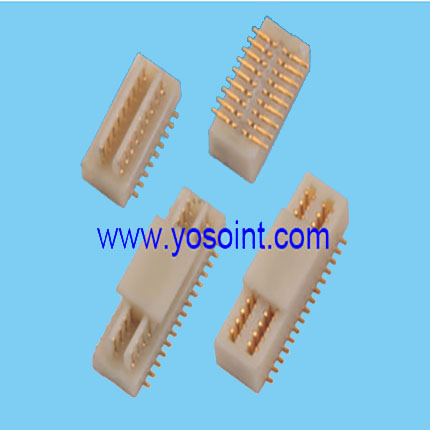

0.8mm BTB connector 8~100P female header SMT with peg

0.8mm BTB connector 8~100P female header SMT with peg
Product Name : 0.8mm BTB connector 8~100P female header SMT with peg
Product ID : YS3713M(F)X
Pitch : 0.5mm; 0.6mm; 0.635mm; 0.8mm; 1.0mm; 1.25mm; 2.54mm
Insulator material : PA9T/LCP(UL94V-0)
Insulator height : PA9T/LCP(UL94V-0)
Contact Material : Phosphor Bronze
Packing : Tube packing; Reel packing
Directions

Product Information

Pitch  0.8mm;
Insulator height H1.0H2.0 for male/ H3.0 H3.5 H4.0 H4.5 for female
Type of terminal SMT
Number of contact pin  8P~100P
Plating  Gold over Ni; selective gold
Package method  Tube package;tape&reel package

Product Specification

Electical Rating:AC/DC 50V 0.5A
Insulation Resistance: 500MΩ
Withstand Volt:200VAC/minute
Oprating Temperature:-40℃ to +105℃
Contact Material: Phosphor Bronze
Contact: Au over Ni
Insulator Material: PA9T/LCP(UL94V-0)
Max. Precessing Temp: 230℃ for 30~60 seconds
                                  (260℃ for 10seconds)

Product Drawing

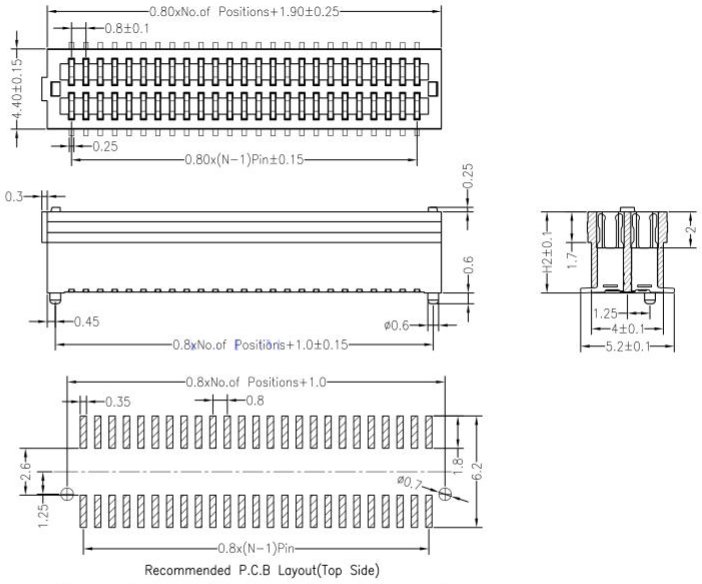

0.8mm BTB 8~100P male header H1.0 H2.0 SMT W5.2


0.8mm BTB 8~100P female header H3.0 H3.5 H4.0 H4.5 SMT W5.2
