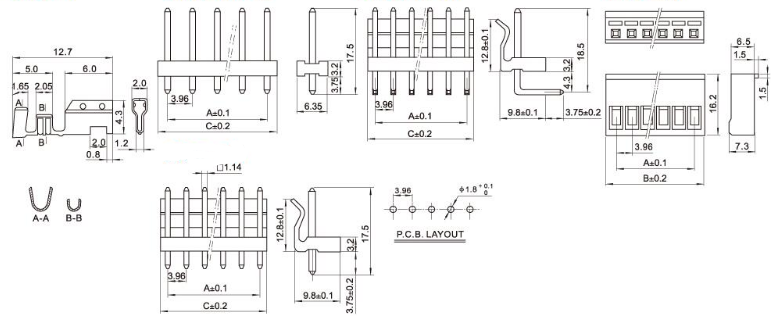

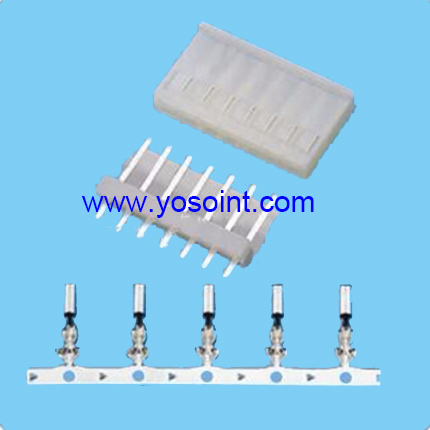

Product Name : 3.96mm pitch wafer connector 5195 type

Insulator material : LCP;PBT;PA46;;PA6T;PA9T

Color : Black; Grey; Red; White; Beiges

Terminal material : Phosphor bronze

Contact plating : Tin plated;Gold plated

Terminal style : Straight solder;Right angle;Surface mount

Directions

Product information

Pitch	0.8mm; 1.0mm; 1.25mm;1.5mm;2.0mm;2.5mm;2.54mm;3.0mm; 3.96mm; 4.2mm;5.08mm
Classification	Pin header;Housing;Terminal
Number of contact	02~24pin
Color	Black;Grey;Red;white;Beiges
Terminal style	Straight solder;Right angle;Surface mount
Insulator material	LCP;PBT;PA46;;PA6T;PA9T
Insulator flammability	UL94V-0
Terminal material	Phosphor bronze
Contact plating	Tin plated;Gold plated
Operating temperature	-40℃...+85℃
