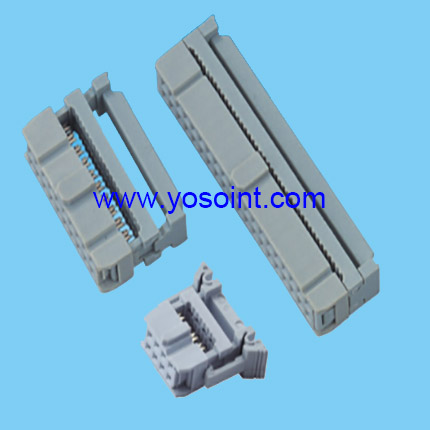

2.54mm Pitch IDC Socket With strain relief clamp Single touching

2.54mm Pitch IDC Socket With strain relief clamp Single touching
Product Name : 2.54mm Pitch IDC Socket With strain relief clamp Single touching
Product ID : YS5313-X
Pitch : 2.54mm 2.0mm 1.27mm
Contact material : Phosphor Bronze
Plating : Sn over Ni; Gold flsh/tin
Type : FC type; FD type
Insulator material : PBT PA46
Directions

Product Information

Pitch  2.54mm
Type FC type; FD type; M type
Number of pin per row  10~44pin
Insulator material PBT PA46
Insulator Flammability  UL 94V-0
Contact material brass
Plating  Au or Sn over Ni
Color  Black; Gray
Package method  Bag package;pallet package



Product Specification

Rated Current:3.0AMP
Contact Resistance: 20Ω Max
Withstand Voltage: 1000V AC/DC
Insulation resistance: 1000mΩ Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PBT
Max. Processing Temp: 230C for 30-60 Seconds
(260C for 10 Seconds)

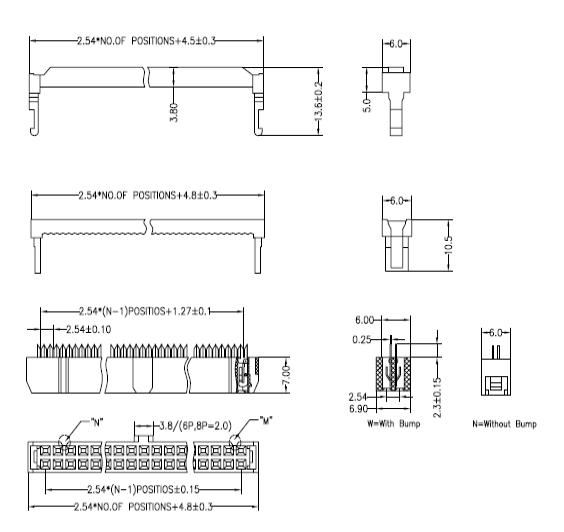

Product Drawing
