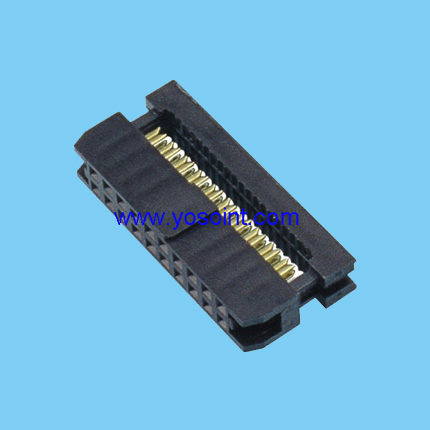

2.54mm IDC socket connector two type
Product Name : 2.54mm IDC socket connector two type
Product ID : YS5313-X
Pitch : 2.54mm 2.0mm 1.27mm
Contact material : Phosphor Bronze
Plating : Sn over Ni; Gold flsh/tin
Type : FC type; FD type
Insulator material : PBT PA46
Directions
Product Information
| Pitch | 2.54mm |
| Type | FC type; FD type; M type |
| Number of pin per row | 10~44pin |
| Insulator material | PBT PA46 |
| Insulator Flammability | UL 94V-0 |
| Contact material | brass |
| Plating | Au or Sn over Ni |
| Color | Black; Gray |
| Package method | Bag package;pallet package |
Product Specification
Rated Current:1.0AMP
Contact Resistance: 20Ω Max
Withstand Voltage: 500V AC/DC
Insulation resistance: 1000mΩ Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PBT
Max. Processing Temp: 230C for 30-60 Seconds
(260C for 10 Seconds)

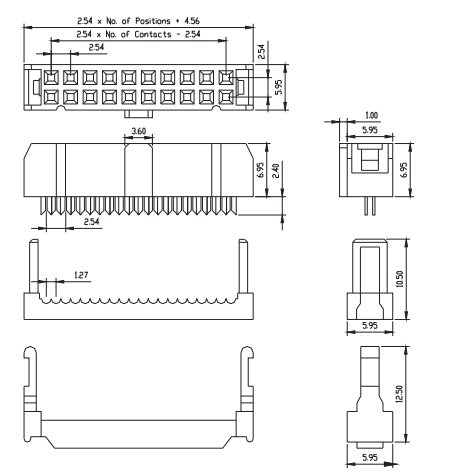

Product Drawing
