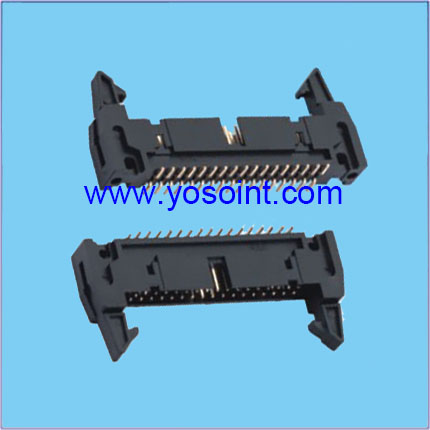

2.54mm Ejector Header Connector SMT Type

2.54mm Ejector Header Connector SMT Type
Product Name : 2.54mm Ejector Header Connector SMT Type
Product ID : YS3310MX
Pitch : 2.54mm 2.0mm 1.27mm
Insulator material : LCP; PBT; PA46; PA6T; PA9T (UL94V-0)
Plating : gold plated; tin plated
Type of terminal : SMT DIP RA
Color : grey;black; white
Directions

Product Information

Pitch  2.54mm
Number of pin per row  06~64pin
Insulator material LCP PBT PA46 PA6T PA9T
Insulator Flammability  UL 94V-0
Contact material Brass
Plating  gold plated; tin plated
Type or terminal  SMT RA DIP
Package method  Bag package;pallet package; tube package; T&R package



Product Specification

Rated Current: 3.0 AMP
Contact Resistance: 20mΩ Max
Withstand Voltage: 1000V AC/DC
Insulation Resistonce: 1000MΩ Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Au Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PA9T
Max. Processing Temp: 230C for 30-60 Seconds
(260C for 10 Seconds)

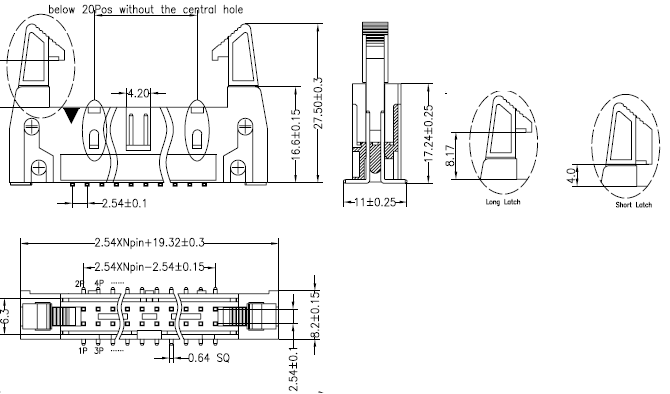

Product Datasheet
