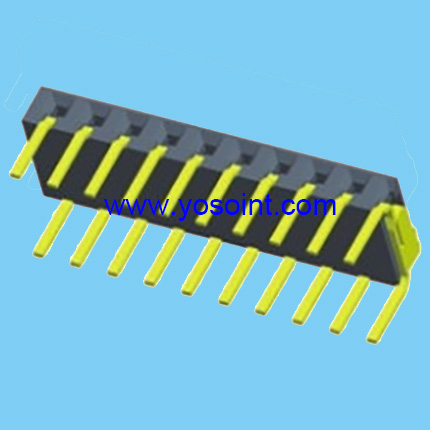

2.0mm Female Header H4.5 right angle Side Entry both side Single row U Type

2.0mm Female Header H4.5 right angle Side Entry both side Single row U Type
Product Name : 2.0mm Female Header H4.5 right angle Side Entry both side Single row U Type
Product ID : YS234501RUX
insulator material : PBT PA46 PA6T PA9T LCP
Insulator flammability : UL 94V-0
Terminal material : Phosphor bronze or brass
Pating : gold plated or tin plated
Terminal type : DIP SMT RA ;Horizontal SMT
Directions

Prodcut Information

Pitch  2.0mm
Insulator height  2.0mm; 2.2mm; 2.8mm; 4.0mm; 4.3mm; 4.5mm; 4.6mm; 4.9mm; 6.35mm; 7.2mm
Number of row  Single row; Double row; Triplex row; Four row
Insulator material PBT/ LCP/ PA46/ PA6T /PA9T
Teminal material  Phosphor bronze or brass
Type of terminal DIP/ RA /SMT /Horizontal SMT
plating  Gold plated; Tin plated
Climatic category
55/125/21
Operating humidity Anuual 75%
Location peg Wiht or Whiout

Package mothod

Tube package; Pallet package ;Tape&reel package

Prodcut specification

Rated current: 1.5AMP

Contact resistance: 20mΩ Max

Withstand voltage: 500V AC/DC

Insulation resistance: 1000mΩ Min

Opertion Temperature: -40C to +105C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni.

Insulator Material: Polyester(UL94V-0)

Standard: PA6T

Max.Processing Temp: 230C for 30-60 seconds

(260C for 10 seconds)

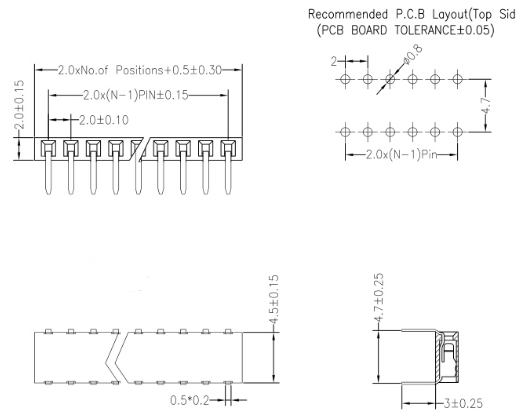

Prodcut Drawing
