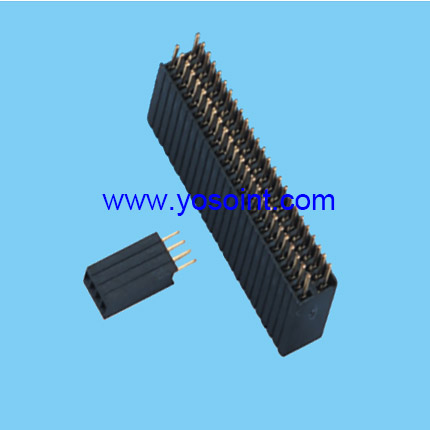

1.27x2.54mm Female Header H8.5mm Straight DIP Dual rows.

1.27x2.54mm Female Header H8.5mm Straight DIP Dual rows.
Product Name : 1.27x2.54mm Female Header H8.5mm Straight DIP Dual rows.
Product ID : YS258502SYX
insulator material : PBT PA46 PA6T PA9T LCP
Insulator flammability : UL 94V-0
Terminal material : Phosphor bronze or brass
Pating : gold plated or tin plated
Terminal type : DIP SMT RA ;Horizontal SMT
Directions

Prodcut Information

Pitch  1.27*2.54mm
Insulator height  4.6mm; 5.7mm; 8.5mm
Number of row  Single row Double row
Insulator material PBT LCP PA46 PA6T PA9T
Teminal material  Phosphor bronze or brass
Type of terminal DIP RA SMT Horizontal SMT
plating  Gold plated Tin plated
Climatic category
55/125/21
Operating humidity Anuual 75%
Location peg Wiht or Whiout

Package mothod

Tube package Pallet package Tape&reel package

Prodcut specification

Rated current: 1.0AMP

Contact resistance: 20mΩ Max

Withstand voltage: 500V AC/DC

Insulation resistance: 1000mΩ Min

Opertion Temperature: -40C to +105C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni.

Insulator Material: Polyester(UL94V-0)

Standard: PA6T

Max.Processing Temp: 230C for 30-60 seconds

(260C for 10 seconds)

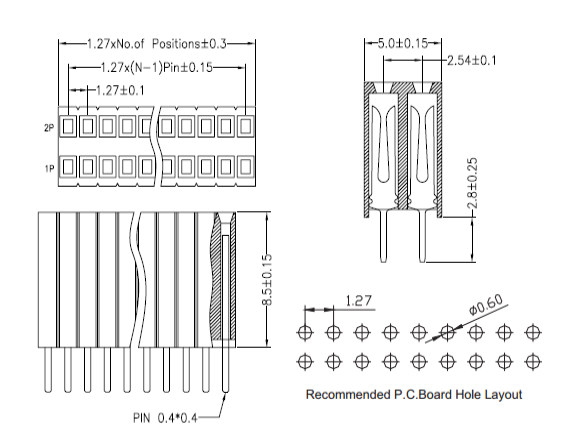

Prodcut Drawing
