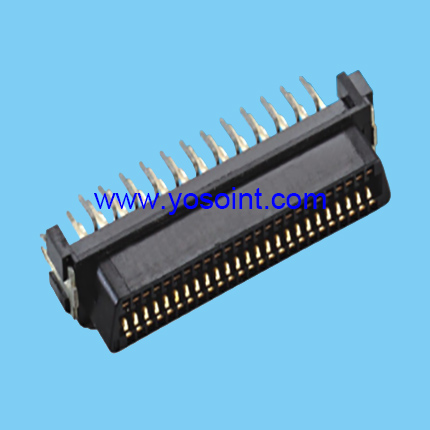

Product Name : SCSI connector female straight solder 50P

Pitch : 1.27mm

Solder type : RA; DIP; SMT; wire solder

Package : Pallet package

Plating : Gold or selective gold

Insulator : Black PBT

Directions

Product Specification

Rated current: 1.0AMP

Contact resistance: 50mΩ Initial

Withstand voltage:500V AC/DC

Insulation resistance: 500mΩ Min

Opertion Temperature: -40℃ to +105℃

Contact:Copper Alloy

Shell: Zinc Alloy

Contact Plating: Gold over Ni

Insulator Material: Thermoplastic (UL94V-0)

Max.Processing Temp: 180℃ for 30-60 seconds

(200℃ for 10 seconds)
