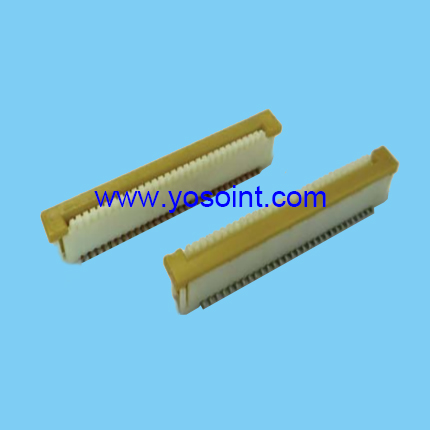

FPC connector 1.0mm pitch Surface mount-perpendicular

FPC connector 1.0mm pitch Surface mount-perpendicular
Product Name : FPC connector 1.0mm pitch Surface mount-perpendicular
Pitch : 0.3mm; 0.5mm; 1.0mm; 1.25mm; 2.54mm
Type of terminal : straight solder;right angle solder;surface mount; Horizontal SMT
Plating : Gold plated; tin plated
Insulator material : LCP; PA6T;PA9T
Terminal material : Brass or Phosphor bronze
Directions

Product Information

Pitch  0.3mm; 0.5mm; 1.0mm; 1.25mm; 2.54mm
Type of terminal  straight solder;right angle solder;surface mount;Horizontal SMT
Plating  Gold plated; tin plated
Insulator material  LCP; PA6T;PA9T
Insulator Flammability UL 94V-0
Terminal material  Brass or Phosphor bronze
Contact style  double side contact;downside&upside contact
Package Bag package;Tube package; Tape&reel package;Pallet package
 Withstand voltage  250V AC
Current rating 0.4~1Amps
Contact resistance 20m Ω
insulator resistance 100~1000m Ω
Operating temp. -25~+85℃
Operating Humidity Annual mean 75%

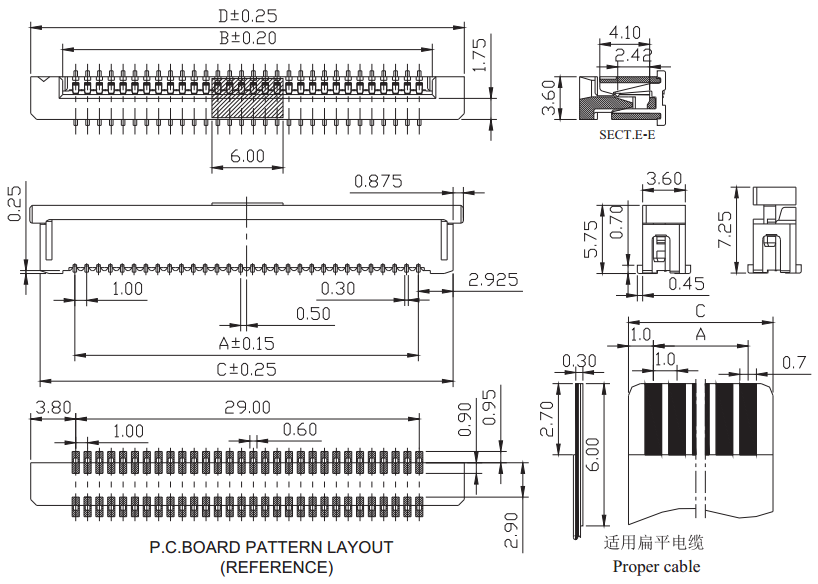

Product Drawing
