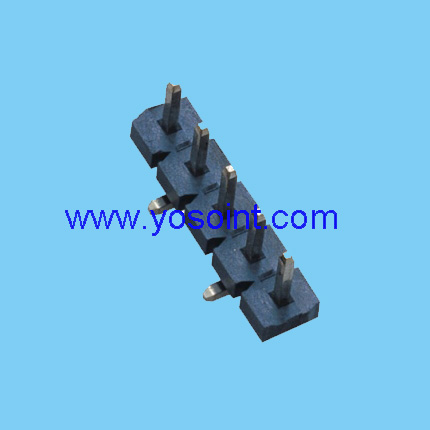

5.08mm Pitch Pin Header H2.5 Single Row SMT

5.08mm Pitch Pin Header H2.5 Single Row SMT
Product Name : 5.08mm Pitch Pin Header H2.5 Single Row SMT
Product ID : YS1125-11MX
Pitch : 0.8mm~5.08mm
Contact Pins : 02~80pins
Terminal material : Phosphor bronze or brass
Plating : gold plated or tin plated
Terminal type : DIP SMT RA ;Horizontal SMT
Directions

Product Information

Pitch  2.54mm
Insulator height  1.5mm; 1.7mm; 2.0mm; 2.5mm; 3.3mm; 4.3mm;7.4mm
Number of row  Single row; Double row
Insulator layer Single layer; Double layer
Insulator material PBT/ LCP/ PA46/ PA6T /PA9T
Teminal material  Phosphor bronze or brass
Type of terminal DIP/ RA /SMT/ Horizontal SMT
plating  Gold plated; Tin plated
Climatic category
55/125/21
Operating humidity Anuual 75%
Location peg Wiht or Whiout

Package mothod

PE bag; Tube package; Pallet package ;Tape&reel package

Product specification

Rated current: 3.0AMP

Contact resistance: 20mΩ Max

Withstand voltage: 500V AC/DC

Insulation resistance: 1000mΩ Min

Opertion Temperature: -40C to +105C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni.

Insulator Material: Polyester(UL94V-0)

Standard: PA6T

Max.Processing Temp: 230C for 30-60 seconds

(260C for 10 seconds)

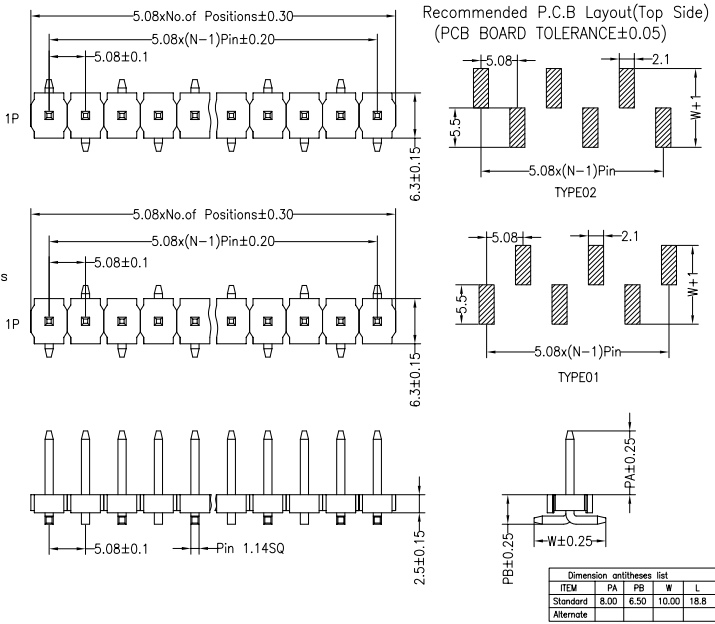

Product Drawing
