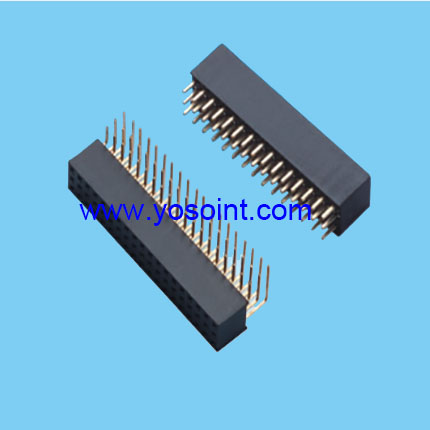

2.54mm Female Header H7.1mm triple row Right angle

2.54mm Female Header H7.1mm triple row Right angle
Product Name : 2.54mm Female Header H7.1mm triple row Right angle
Product ID : YS227103RUX
Pitch : 0.8mm~5.08mm
Contact Pins : 02~80pins
Terminal material : Phosphor bronze or brass
Pating : gold plated or tin plated
Terminal type : DIP SMT RA ;Horizontal SMT
Directions

Product Information

Pitch  2.54mm
Insulator height  3.2mm; 3.5mm; 5.0mm; 5.7mm; 5.9mm; 6.8mm; 7.1mm; 8.3mm; 8.5mm; 11mm
Number of row  Single row; Double row; Triplex row; Four row
Insulator material PBT/ LCP/ PA46/ PA6T /PA9T
Teminal material  Phosphor bronze or brass
Type of terminal DIP/ RA /SMT /Horizontal SMT
plating  Gold plated; Tin plated
Climatic category
55/125/21
Operating humidity Anuual 75%
Location peg Wiht or Whiout

Package mothod

Tube package; Pallet package ;Tape&reel package

Product specification

Rated current: 3.0AMP

Contact resistance: 20mΩ Max

Withstand voltage: 1000V AC/DC

Insulation resistance: 1000mΩ Min

Opertion Temperature: -40C to +105C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni.

Insulator Material: Polyester(UL94V-0)

Standard: PA6T

Max.Processing Temp: 230C for 30-60 seconds

(260C for 10 seconds)

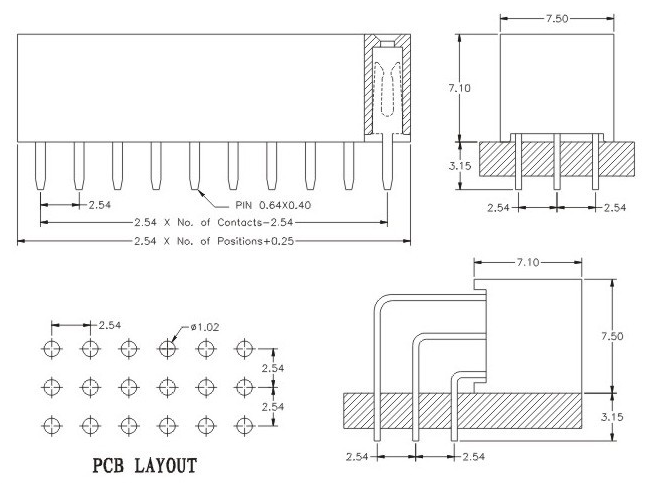

Product Drawing
