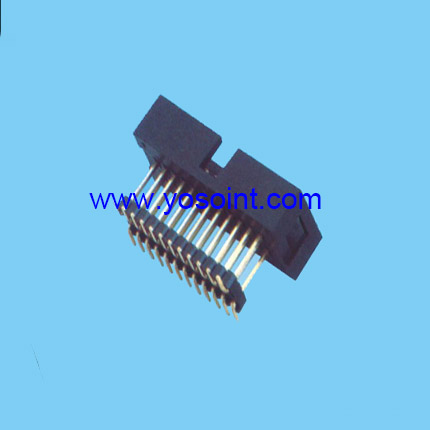

2.54mm BOX Header H8.8 plus pin header insulator SMT type

2.54mm BOX Header H8.8 plus pin header insulator SMT type
Product Name : 2.54mm BOX Header H8.8 plus pin header insulator SMT type
Product ID : YS3210MX-1
Pitch : 2.54mm 2.0mm 1.27mm ; 1.0mm
Contact material : copper phosphor; copper
Plating : gold plated; tin plated
Type of terminal : SMT DIP RA
Insulator material : LCP PBT PA46 PA6T PA9T
Directions

Product Information

Pitch  2.54mm
Insulator height H8.8mm; H9.7mm; H10.9mm; H13.6mm; IDC type
Number of pin per row  10~64pin
Insulator material LCP PBT PA46 PA6T PA9T
Insulator Flammability  UL 94V-0
Contact material copper phosphor; copper
Plating  gold plated; tin plated
Type or terminal  SMT RA DIP
Color grey;black; white
Package method  Bag package;Tube package;pallet package;tape&reel package
Climatic category  55/125/21
Operating temp. -55...+125℃



Product Specification

Rated Current:2.0AMP
Contact Resistance: 30Ω Max
Withstand Voltage: 600V AC/DC
Insulation resistance: 1000mΩ Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Au Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max. Processing Temp: 230C for 30-60 Seconds
(260C for 10 Seconds)

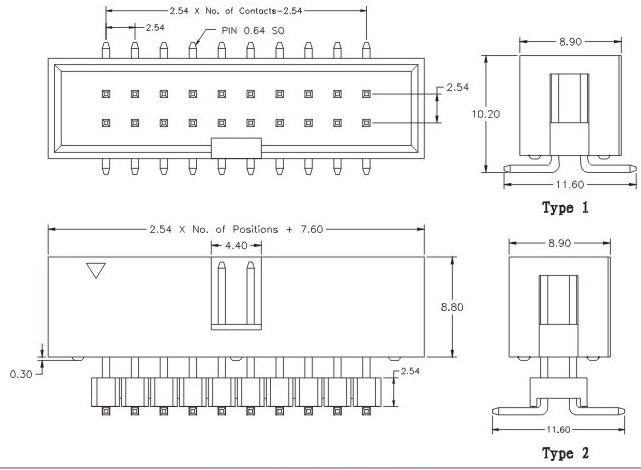

Product Drawing
