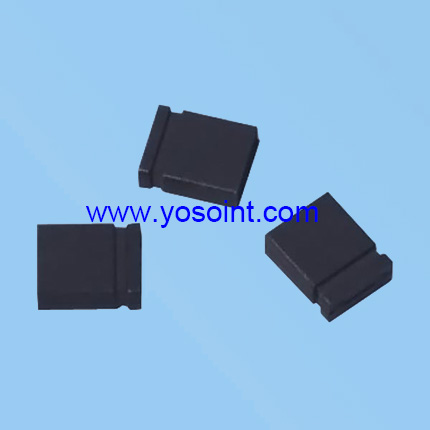

2.0mm pitch Mini Jumper Caps H5.0 Close type
Product Name : 2.0mm pitch Mini Jumper Caps H5.0 Close type
Product ID : YS381150C
Pitch : 1.27mm; 2.0mm; 2.54mm; 5.08mm
No of pins : 1x2 port Close type
Plating : Au over Ni
Plastic height : 3.5mm; 5.0mm; 9.5mm
Color type : Black; Blue; Red; White; Yellow
Directions
Product Specification
Rated current: 1.0AMP
Contact resistance: 20mΩ Initial
Withstand voltage:500V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40℃ to +105℃
Contact Material: phosphor bronze
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PBT
Max.Processing Temp: 180℃ for 30-60 seconds
(200℃ for 10 seconds)

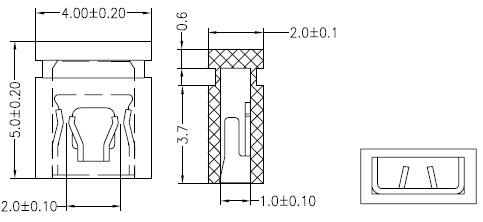

Product Drawing
