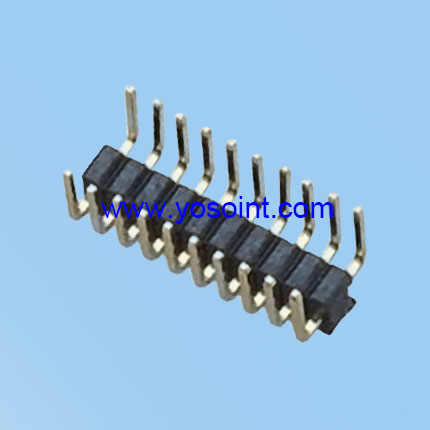

2.0mm Pin header Connectors H2.0 Single Row both side Right angle U Type

2.0mm Pin header Connectors H2.0 Single Row both side Right angle U Type
Product Name : 2.0mm Pin header Connectors H2.0 Single Row both side Right angle U Type
Product ID : YS1320-11RX
Pitch : 0.8mm~5.08mm
Contact Pins : 02~80pins
Terminal material : Phosphor bronze or brass
Pating : gold plated or tin plated
Terminal type : DIP SMT RA ;Horizontal SMT
Directions

Product Information

Pitch  2.0mm
Insulator height  1.5mm; 2.0mm; 4.0mm
Number of row  Single row; Double row; Triple row; Four row
Insulator layer Single layer; Double layer
Insulator material PBT/ LCP/ PA46/ PA6T /PA9T
Teminal material  Phosphor bronze or brass
Type of terminal DIP/ RA /SMT/ Horizontal SMT
plating  Gold plated; Tin plated
Climatic category
55/125/21
Operating humidity Anuual 75%
Location peg Wiht or Whiout

Package mothod

PE bag; Tube package; Pallet package ;Tape&reel package

Product specification

Rated current: 1.0AMP

Contact resistance: 20mΩ Max

Withstand voltage: 500V AC/DC

Insulation resistance: 1000mΩ Min

Opertion Temperature: -40C to +105C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni.

Insulator Material: Polyester(UL94V-0)

Standard: PA6T

Max.Processing Temp: 230C for 30-60 seconds

(260C for 10 seconds)

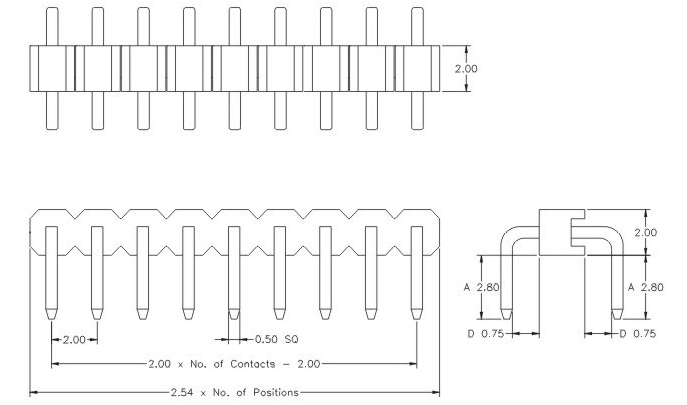

Product Drawing
