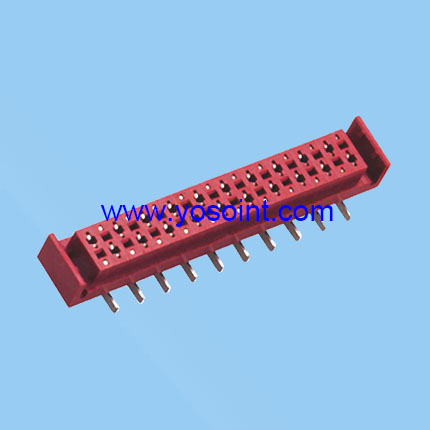

1.27mm micro match IDC connector Female SMT with ear

1.27mm micro match IDC connector Female SMT with ear
Product Name : 1.27mm micro match IDC connector Female SMT with ear
Product ID : YS4000FM
Pitch : 2.54mm 2.0mm 1.27mm
Contact material : Phosphor Bronze
Plating : Sn over Ni; Gold flsh/tin
Type of terminal : SMT DIP RA
Insulator material : PBT PA46
Directions

Product Information

Pitch  1.27mm
Type FC type; FD type; M type
Number of pin per row  4~26pin
Insulator material PBT PA46
Insulator Flammability  UL 94V-0
Contact material copper phosphor; copper
Plating  gold plated; tin plated
Type or terminal  SMT RA DIP
Color Red; Black; White
Package method  Bag package;Tube package;pallet package;tape&reel package



Product Specification

Rated Current:1.0AMP
Contact Resistance: 20Ω Max
Withstand Voltage: 500V AC/DC
Insulation resistance: 1000mΩ Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Sn Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PA46
Max. Processing Temp: 230C for 30-60 Seconds
(260C for 10 Seconds)

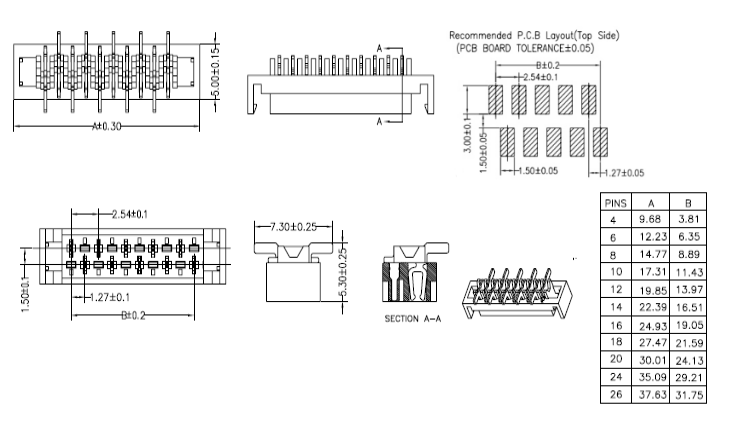

Product Drawing
