1.27mm machine pin female header H3.8 doual row straight solder

1.27mm machine pin female header H3.8 doual row straight solder

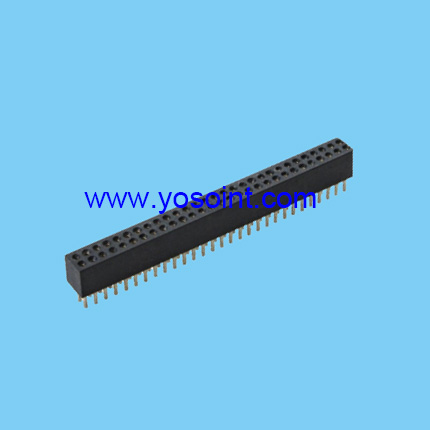

Product Name : 1.27mm machine pin female header H3.8 doual row straight solder
Product ID : YS3624-382SX
Pitch : 1.27mm; 1.778mm; 2.0mm; 2.54mm
Insulator material : PPS-GF30-FR(UL94V-0)
Sleeve material : Brass CuZn36Pb3
Contact clips material : Beryllium copper
Type of terminal : DIP;SMT;RA;Wire-wrap
Directions

Product Information

Pitch  1.27mm;
Insulator height 1.9mm; 3.8mm;H:4.1mm: H2.2mm
Type of terminal DIP;SMT;RA;Wire-wrap
Number of Row Single row; Double row
Number of contact pin  02~80Pin
Plating  Gold plated; tin plated
Package method  Tube package;pallet package;tape&reel package
Climatic category  55/125/21
Operating humidity  Annual mean 75%

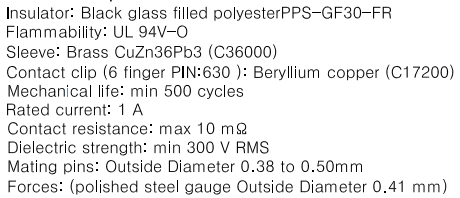

Product Specification

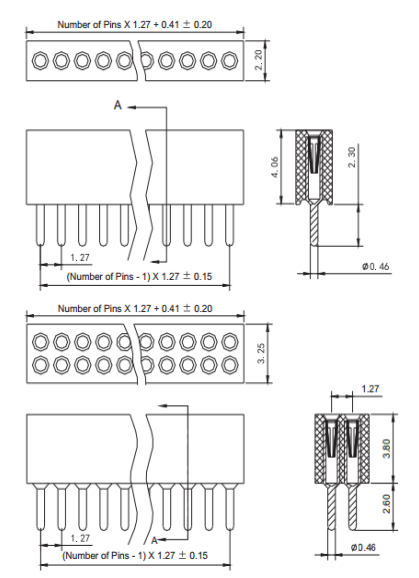

Product Drawing
