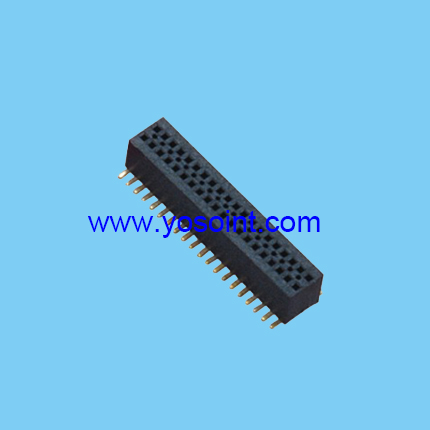

0.8mm pitch Female Header H=3.1 Double Row SMT Type

0.8mm pitch  Female Header H=3.1 Double Row SMT Type
Product Name : 0.8mm pitch Female Header H=3.1 Double Row SMT Type
Product ID : YS273002MUX
insulator material : PBT PA46 PA6T PA9T LCP
Insulator flammability : UL 94V-0
Terminal material : Phosphor bronze or brass
Pating : gold plated or tin plated
Terminal type : DIP SMT RA
Directions

Prodcut Information

Pitch  0.8mm
Insulator height  3.1mm
Number of row  Single row Double row
Insulator material PBT LCP PA46 PA6T PA9T
Teminal material  Phosphor bronze or brass
Type of terminal DIP RA SMT
plating  Gold plated Tin plated
Climatic category
55/125/21
Operating humidity Anuual 75%
Location peg Wiht or Whiout
Package mothod

Tube package Pallet package Tape&reel package

Prodcut specification

Rated Current: 0.75 AMP

Contact Resistance: 30mR Max

Withstand Voltage: 500V AC/DC

Insulation Resistonce: 1000MR Min

Operation Temperature: 40C to +105C

Contact Material: Phosphor Bronze

Contact Plating: Au Over Ni

Insulator Material: Polyester(UL94V-0)

Standard: PA6T

Max. Processing Temp: 230C for 30-60 Seconds

(260C for 10 Seconds)

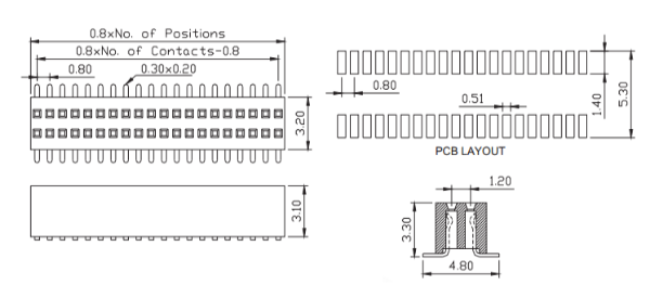

Prodcut Drawing
