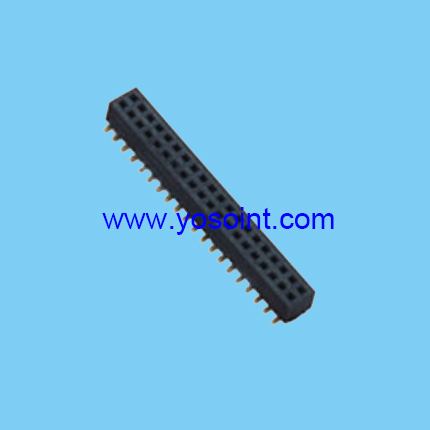

1.0mm pitch female header H2.0 double row SMT
Product Name : 1.0mm pitch female header H2.0 double row SMT
Product ID : YS262002MUX
insulator material : PBT PA46 PA6T PA9T LCP
Insulator flammability : UL 94V-0
Terminal material : Phosphor bronze or brass
Pating : gold plated or tin plated
Terminal type : DIP SMT RA
Directions
Prodcut Information
| Pitch | 1.0mm |
| Insulator height | 2.0mm |
| Number of row | Single row Double row |
| Insulator material | PBT LCP PA46 PA6T PA9T |
| Teminal material | Phosphor bronze or brass |
| Type of terminal | DIP RA SMT |
| plating | Gold plated Tin plated |
| Climatic category |
55/125/21 |
| Operating humidity | Anuual 75% |
| Location peg | Wiht or Whiout |
| Package mothod |
Tube package Pallet package Tape&reel package |
Electronical characteristics
| pitch | 1.0mm |
| Current rating | 1Ampere |
| Contact resistance(Max) | 20ohm |
| Whithstand voltage(one Min.) | 200V AC |
| insulator resistance(Min) | 500ohm |
| Machanical Life(Min) | 100Cycles |
Prodcut specification
Rated current: 0.75AMP
Contact resistance: 30mΩ Max
Withstand voltage: 500V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max.Processing Temp: 230C for 30-60 seconds
(260C for 10 seconds)

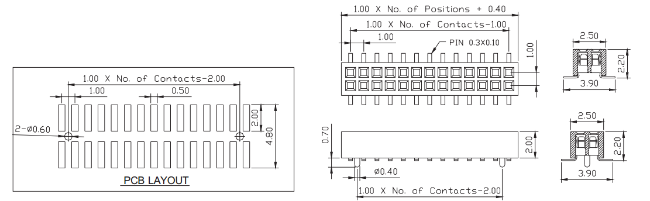

Prodcut Drawing
